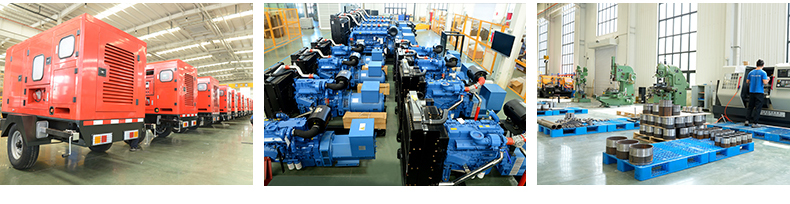

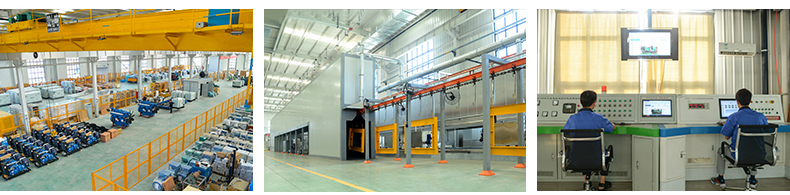

Real time shooting of Huaquan Group's digital factory
1.Water Pump Type
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Self-priming pump |
Centrifugal pump |
Axially split pump |
Mixed-flow pump |
Multi-stage pump |
Chemical pump |
Slurry Pump |
High pressure cleaning pump |
High-pressure plunger pump |
2.Product Introduction
3.Product Specification
| Pump Technical Parameters |
| Brand/Origin: Huaquan/Shandong |
Medium: Fresh water, seawater or other liquids similar to water in physical and chemical properties. |
| Pump Type: Double Suction Pump |
Shaft Power: / |
| Pump Model: 350S-16 |
Suction Lift: 4-6m |
| Head: 17m |
Inlet Diameter: 350mm |
| Flow Rate: 1200m³/h |
Outlet Diameter: 300mm |
| Diesel Engine Technical Parameters |
| Brand/Origin: HD/Shandong |
Cooling Method: Closed-loop Water Circulation Cooling |
| Diesel Engine Model: R6105IZLD |
Fuel Supply Method: Direct Injection |
| Diesel Engine Rated Power: 145kW |
Diesel Engine Overload Power: / |
| Compression Rate: 19.0:1 |
Speed Control Method: Mechanical speed regulation |
| Number of Cylinders/Structure: 6/L-Type |
Intake Method: Turbocharged |
| Bore and Stroke: 105×135mm |
Overload Capacity: 110% |
| Starting Method: DC 24V electric start |
Rated Speed: 1500 rpm |

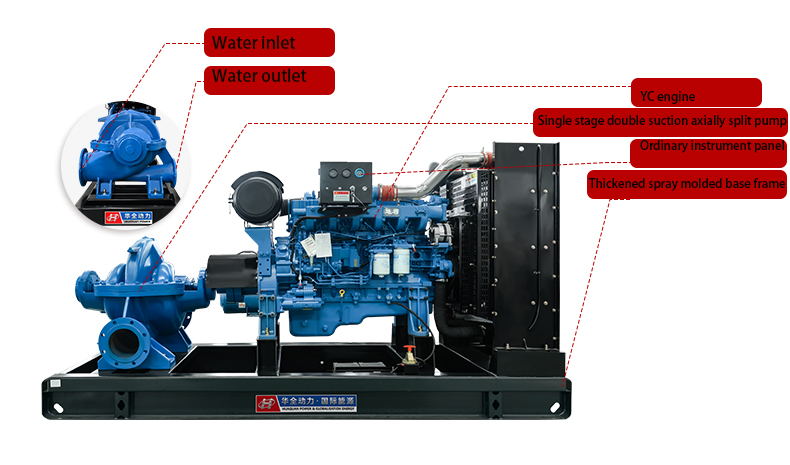

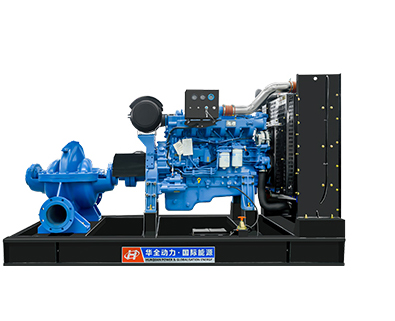

4.Appearance and Structure
 |
 |

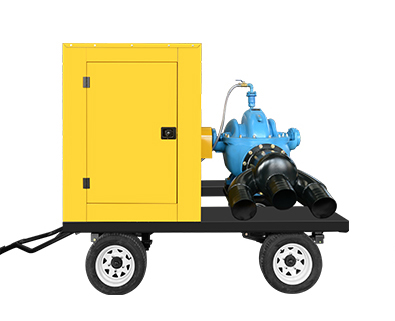

| Mobile |
Open-frame |
5.Scope of Application
Single stage double suction split pump: High flow, various engineering pumps that can extract clean water and seawater.

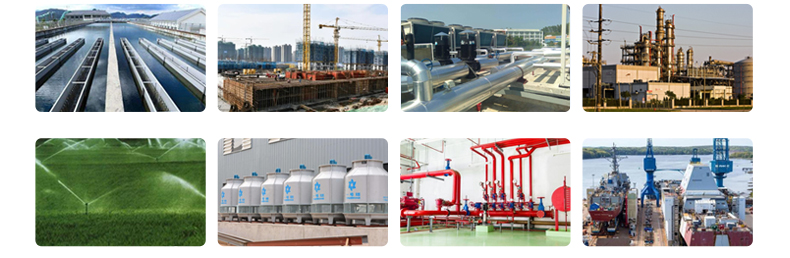

Mainly suitable for industries such as water plants, air conditioning circulating water, building water supply, irrigation, drainage pump stations, power stations, industrial water supply systems, fire protection systems, shipbuilding industry, etc,Used for conveying clean water without solid particles or other liquids with physical and chemical properties similar to water.
6.Product Advantages
|
1.Strict ex-factory standards:Each machine undergoes full trial operation before leaving the factory, and is equipped with a product qualification certificate and quality assurance after meeting the requirements.
|
 |
|

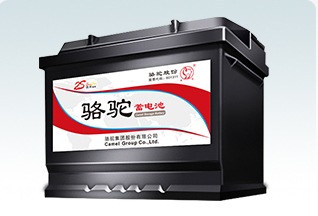

2.Large capacity maintenance free battery，Camel brand, starting at -30 ℃ low temperature, with good conductivity and low self-consumption.
|
 |
|

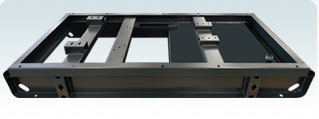

3.Thickened "C-shaped" bending base, Fully automatic spray molding technology processing, corrosion-resistant and rust resistant.
|
 |
|

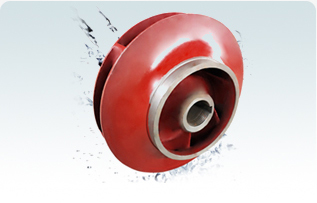

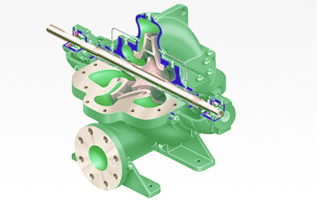

4.The impeller has a two section symmetrical structure, and liquid flows into the impeller from both sides, which is equivalent to two single suction impellers of the same diameter working at the same time, doubling the flow rate.The inner surface of the pump casing and the smooth surface of the impeller have significant anti cavitation performance and high efficiency.
|
 |
|
5.Exquisite processing technology, casting without voids or cracks, smooth inner surface, avoiding electrochemical corrosion, increasing mechanical efficiency, reducing energy consumption, and able to operate continuously and efficiently for a long time.
|
|

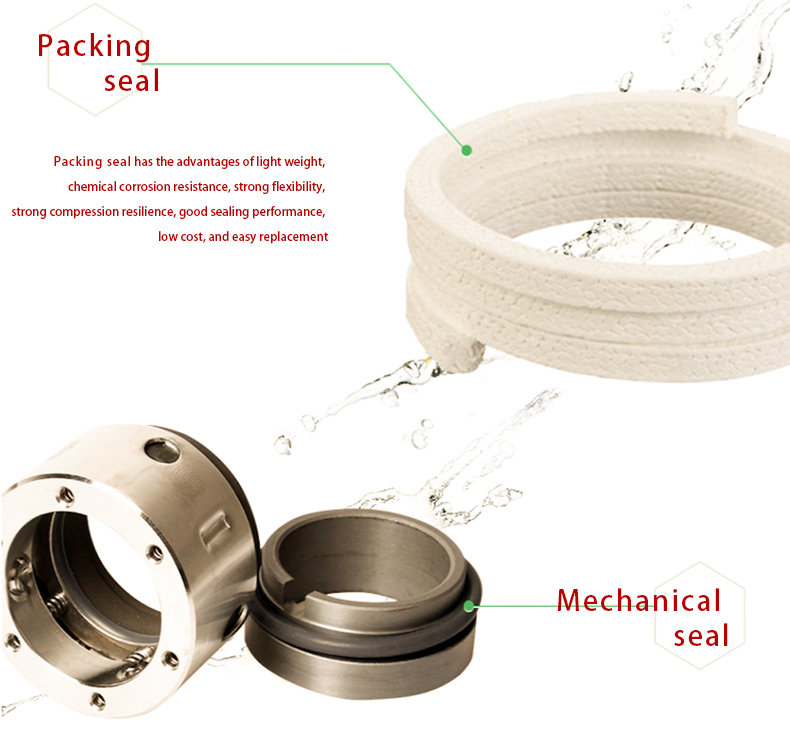

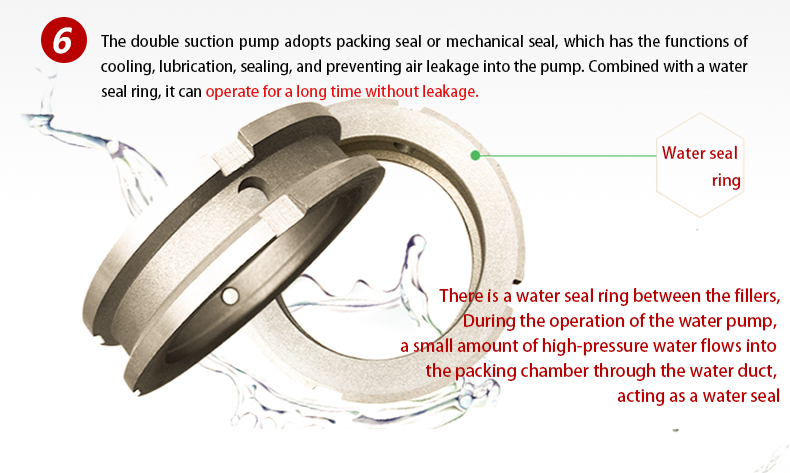

6.The double suction pump adopts packing seal or mechanical seal, which has the functions of cooling, lubrication, sealing, and preventing air leakage into the pump. Combined with a water seal ring, it can operate for a long time without leakage.
|
|
|
|
 |
|
7.The double suction pump has a compact structure and good stability. The pump casing is centrally opened, making maintenance convenient without the need for disassembly.
|
 |
|
8.Customer First: According to the working conditions, the corrosion-resistant and high-temperature resistant type, flow rate, and head can be customized privately.
|
