Flood control water pump _Multistage Centrifugal pump

Quantity:

SKU:{{ product.sku }}

Model: {{ product.model }}

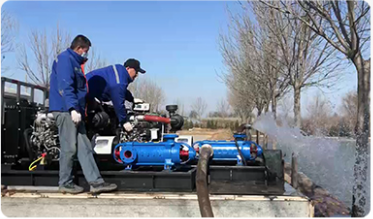

Real time shooting of Huaquan Group's digital factory

1.Water Pump Type


Self-priming pump	Centrifugal pump	Axially split pump	Mixed-flow pump	Multi-stage pump	Chemical pump	Slurry Pump	High pressure cleaning pump	High-pressure plunger pump

2.Product Introduction

3.Product Specification

Pump Technical Parameters
Brand/Origin: Huaquan/Shandong	Medium: /
Pump Type: Multistage Pump	Shaft Power: /
Pump Model: D280-43X5	Suction Lift: 4-6m
Rated Head: 200m	Inlet Diameter: 200mm
Rated Flow Rate: 280m³/h	Outlet Diameter: 200mm
Diesel Engine Technical Parameters
Brand/Origin: YC/Guangxi	Cooling Method: Closed-loop Water Circulation Cooling
Diesel Engine Model: YC6MJ480L-D20	Fuel Supply Method: Direct Injection
Rated Power of The Diesel Engine: 321 kW	Diesel Engine Standby Power:352kW
Displacement: 11.726L	Speed Control Method: Electronic Speed Regulation
Number of Cylinders/Structure: 6/L-Type	Intake Method: Natural Aspiration
Bore and Stroke: 131×145 mm	Overload Capacity: 110%
Starting Method: DC 24V electric start	Speed: 1500 rpm

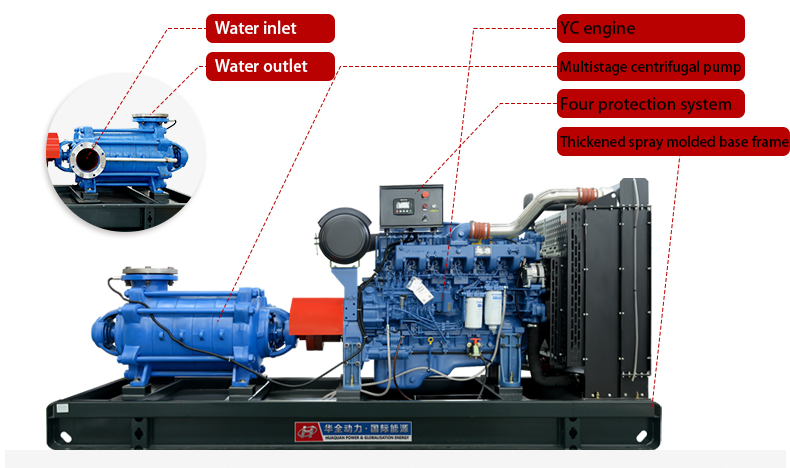

4.Appearance and Structure

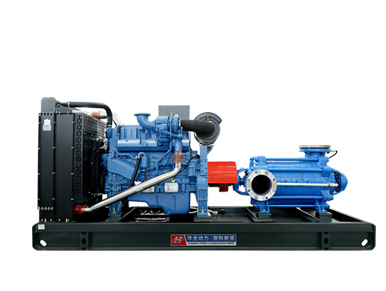

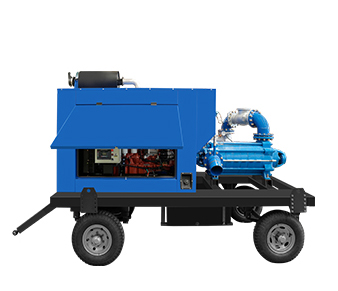

Mobile	Open-frame

5.Scope of Application

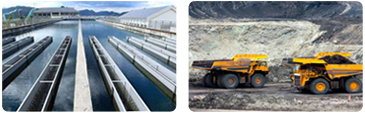

D-type pump is suitable for conveying clean water or liquids with physical and chemical properties similar to clean water that do not contain solid particles and have a temperature not exceeding 80 ℃. It is suitable for use in mining and urban water supply and drainage engineering.

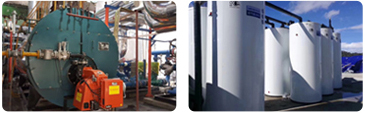

DG pump supply and transport clean water without solid particles, with a temperature not exceeding 105 ℃, or liquids with physical and chemical properties similar to clean water, used for boiler feed water or medium for transporting hot water or similar hot water.

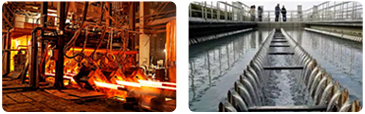

MD pump For the transportation of neutral mineral water with a solid particle content not exceeding 1.5% (particle size less than 0.5 millimeters) and similar other sewage, the temperature of the transported medium shall not exceed 80 ℃, suitable for steel plants, mine drainage, sewage transportation and other occasions.
DF pump supply and transport liquids with a temperature range of -20 ℃ to 105 ℃, free from solid particles and corrosive.

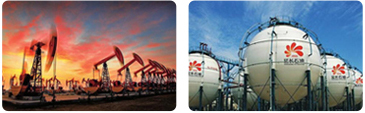

DY pump used for conveying oils and petroleum products that do not contain solid particles, with temperatures ranging from -20 ℃ to 150 ℃ and viscosity less than 120 cSt.

6.Product Advantages

1.Strict ex-factory standards:Each machine undergoes 100% trial operation before leaving the factory, and is equipped with a product qualification certificate and quality assurance after meeting the requirements.
2.Large capacity maintenance free battery，Camel brand, starting at -30 ℃ low temperature, with good conductivity and low self-consumption.
3.Thickened "C-shaped" bending base, Fully automatic spray molding technology processing, corrosion-resistant and rust resistant.

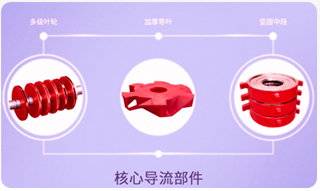

4.Multi stage impellers, guide vanes, and intermediate sections form the core flow guiding components, achieving characteristics such as multi-stage boosting,ultra-high head, and wide parameter range. Additionally, the impeller can be increased to meet the required head requirements based on operating conditions.

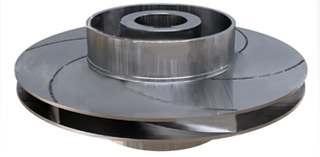

5.The multi-stage impeller has smooth flow channels, which can reduce water loss during operation, achieving greater flow rate and higher head.

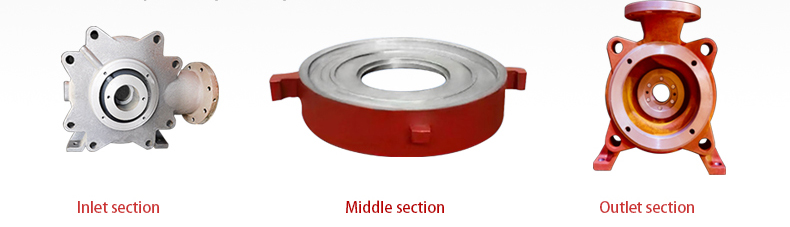

6.The multi-stage pump body includes an inlet section, an outlet section, and a middle section. The middle section, also known as the pump casing, is used to fix the guide vanes and impellers, supporting and fixing each stage impeller.

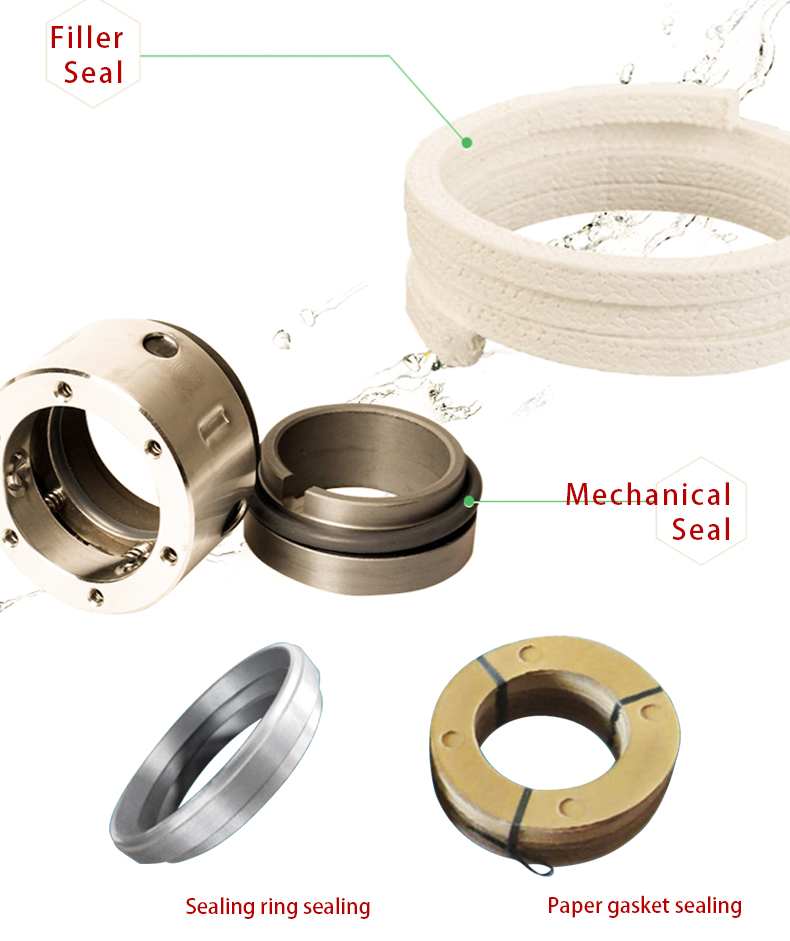

7.Multiple seals, rigorous in form, achieve high efficiency, no leakage, and strong pressure during operation.
