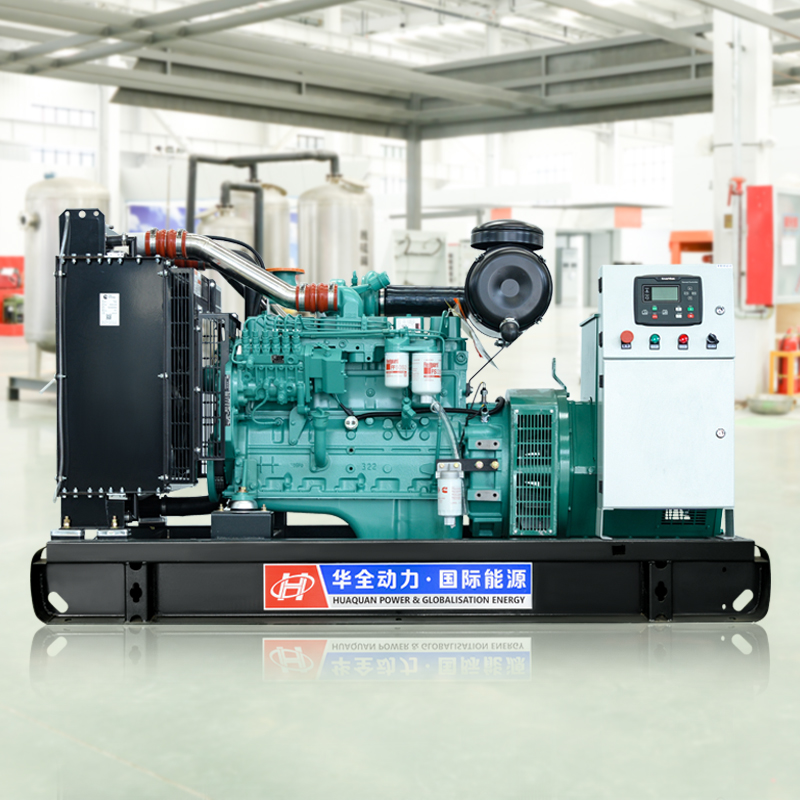

100kW_Diesel generator set

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
Brand: HUAQUAN
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }}

{{ value.name }}

Configuration Checklist /产品配置清单1

Product Name Structure Model Prime Power Standby Pwoer Engine Generator Soundproof Enclosure

Port Arrival Unit Price

Quantity Total Amount
Diesel generator set Ordinary open shelf HQ100GF 100KW
125kva
110KW
137.5kVA
Cummins
6BTA5.9-G2
HUAQUAN
HQF-100
No $9525 1 set $9627

Product Quotation Sheet /产品报价表注释2

1 Transportation Qingdao port freight
2 Tax Refund

Refund of duty  13%

3 Product Parameters

60HZ 1800rpm / 380V

4 Exchange Rate 1 USD ≈7.1378 RMB
1 Quotation

1. This is FOB Qingdao price, exclude the shipping freight to destination.


2 Payment Method

2. Payment method: 30% as deposit and the balance should be paid before delivery.


3 Time of Delivery

3. Time of delivery: 7-20 working days.


4 Validity

4. Validity: It is valid for 30 days.



Product Additional Configuration Markup /产品附加配置加价3

/

Category

Configuration Selection

Product Name

Brand

Model

Description

Unit

Quantity

Price($)

Specification

1

Control Type

Choose One from Two

Four Protections

SmartGen

HGM4010N

Four protections: Low oil pressure, high water temperature, high oil temperature, overload

1

+0

Standard







Automation

AISIKAI, SmartGen

/

Dual power transfer switch, auto-start controller, battery float charger

1

+840



2

Appearance Structure

Choose One from Three

Open Frame

HUAQUAN

/

Fixed

1

+0

Standard







Trailer

HUAQUAN

/

Mobile

1

+1260









Soundproof

HUAQUAN

/

Silent

1

+1120



Products details /产品细节4



1.Camel battery

2S MAINTENANCE-FREE SERIES

Low self-discharge rate

Good electrical conductivity

Powerful

high strength

-30C low temperature start

increased starting power

Long life

2.Damping block

The rubber car type shock absorber is adopted to reduce the vibration of the unit,reduce the damage to the parts and prolong the service life of the unit. The double screw design is stable and more durable,and prevents loosening during operation and reduces the noise caused by vibration.

3.Plastic-sprayed chassis

5mm thick channel steel base frame.multi-fold bending, enhance the ability to withstand impact.

Independent research and development of the chassis shape, unique gaps, effectively prevent water accumulation.

Pickling and phosphating before spraying greatly extend the service life compared to direct spraying.

KEEP IMPROVING

QUIET BEYOND YOUR IMAGINATION

Mute comes from the handling of details

1.BOX BODY: TREATED WITH PLASTIC SPRAYING TECHNOLOGY,CORROSION-RESISTANT AND RUST-FREE

2.MUTE COTTON + GALVANIZED SHEET

Ordinary sound insulation board.

Huaquan Power Thickened Sound Insulation Board (6 cm thick sound insulation cotton + Crested inner wall).

The sound insulation board is thin and the sound insulation effect is poor.

(Upgrade thickened perforated galvanized sound insulation board, airtight noise transmission).

3.OVERALL BENDING

The silent box is made of thickened cold plate and shear plate, which is integrally bent and has a strong overall structure and beautiful appearance.

Huaquan silent box overall bending.

Ordinary silent box

4.BLOCKED AIR INLET AND EXHAUST

The three-layer labyrinth type air intake and exhaust muffler body not only effectively guarantees sufficient fresh air input, but also effectively seals the noise, which has the effect of mute and noise reduction.

5.FILTERED SMOKE EXHAUST PIPE.

6.LARGE CAPACITY BASE FUEL TANK.

It can meet the needs of the unit for 8 hours of operation at full load.

7.POWER CABLE CONNECTION METHOD
The power cable connection adopts a fixed junction box structure, which is directly connected outside the box.

8.EXTERNAL FUEL FILLER

The fuel filler port is designed on the outside of the box, and there is a protection device to facilitate the addition of fuel. The fuel tank is equipped with a magnetic flap level gauge and an analog fuel position sensor at a position that is convenient for observation to facilitate the monitoring personnel to read the level in time.

9.FUEL DRAIN VALVE

The bottom of the tank is equipped with a fuel drain valve, which is particularly convenient for the replacement of lubricating oil and antifreeze.

10.LIFTING HOLE
In order to facilitate hoisting and transportation, 4 hoisting holes are installed at the bottom.

11.EMERGENCY STOP BUTTON
In an emergency, you can press this button to stop the machine immediately.

12.OTHER

shape drawing below 100kW

100-300kW shape diagram

More than 400kw shape diagram



Company Introduction /公司介绍5

              2010年                                                                                  24000 ㎡                                                                   7000 万

                          Huaquan established                                                          Plant  area                                                       Registered capital
     Shandong Huaquan Power Co., Ltd. is located in weifang economic development zone, shandong province. Established in 2010, it is a national high-tech enterprise specializing in the r&d, production, sales and service of intelligent and environment-friendly power equipment.The company covers a total area of more than 40,000 square meters with a registered capital of 50 million yuan.The company has more than 100 high-end technical personnel, with an annual capacity of 3000 sets of power equipment.Company flagship product, intelligent integration of environmental protection power plant, is a comprehensive utilization of integrated information technology, network communication, integrated circuit, advanced manufacturing, and other technology integration innovation power plant products, including standard genset, silent type power station, trailer power station etc., can customize according to customer demand to provide power source integration solution.




Product Series /产品系列6

Portable Power Station Stacked Energy Storage System Diesel Generator Set Silent Generator set
Container Power Station Trailer Power Station Gas Generator Set Integrated Generator
Light Tower Generator Water Pump Set Box Type Substation Electrical Accessories

Testing Platform System/测试平台7

   Huaquan power system testing center takes the international standardized quality management system ISO9001 and quality assurance as the purpose, the assurance requirements of measuring equipment, the measurement system of measuring equipment, and according to the requirements of standardization from various aspects such as the selection of measuring equipment, purchase and installation, service, management, confirmation of the whole process and process control, value traceability, personnel requirements, environmental conditions, etc Reliable data guarantee shall be provided for the process quality and finished product quality of high-quality products, and the products shall be inspected and qualified by the quality supervision and inspection center of national internal combustion engine generator set.



Sales Service Commitment/售后服务承诺8

 Our warranty: All our Gen Sets(easily damaged parts or damage created by customers not included)have one year or 1000 running hours’ guarantee.Starting from delivery day.We will give full free technical support if the default caused by our materials our improper assembly.(easily damaged parts,manually damaged or maintenance delayed not included)

We offer free technical support and minimum charge of accessories if genset’s damage caused by customer.

In warranty time ,We will arrange phone calls to communicate with you once the genset goes wrong. We offer Original Accessories of Gensets in low price,and full technical support even the warranty time expired.

Every year,we keep visiting our users to know its working condition,help them solving possible troubles and get valuable advices.In this way,we believe we can produce better products and higher quality of service.

After-Sale Service Hotline400-162-0536

Engine Selection/发动机选配9

/

Category

Configuration Slection

Brand

Model

Power(kW)

RPM

Unit

Quantity

Price ($)

Specification

1

Engine

Ex-factory Standard

KMS

6BTA5.9-G2

106/116

1500

1

+0

Standard

2

Engine

Optional

KMS

QSB3.9-G39

100/110

1500

1

-280



3

Engine

Optional

KMS

QSB5.9-G30

115/128

1500

1

+700



4

Engine

Optional

KMS

B5.9CS4-GT2

107/117

1500

1

+3360



5

Engine

Optional

KMS

6BT5.9-G2/Small

100/110

1800

1

-3080



6

Engine

Optional

KMS

6BT5.9-G2/Large

115/126

1800


1

-840





Technical parameters of generator set
Model specifications HQ100GF
output power 100kW/125kVA
Output voltage 400V/230V
output current 180A
Rated frequency 50Hz
rated speed 1500rpm
Open frame unit/weight 1200kg
Open shelf size 2200×860×1371
Speaker unit/weight 1700KG
Silent size 3000*1050*1700
Noise (LP7m) 95dB(A)
Diesel engine parameters
Diesel engine model 6BTA5.9-G2
Brand/Origin Cummins
displacement 5.9L
Rated power of diesel engine 106kW
Fuel Grade (Standard)0#Light Diesel
Fuel consumption (full load) 205g/kW·h
Generator parameters
Motor model HQF-100
