1kW Gasoline generator

Quantity:

Brand: HUAQUAN

SKU:{{ product.sku }}

Model: {{ product.model }}

Product 1

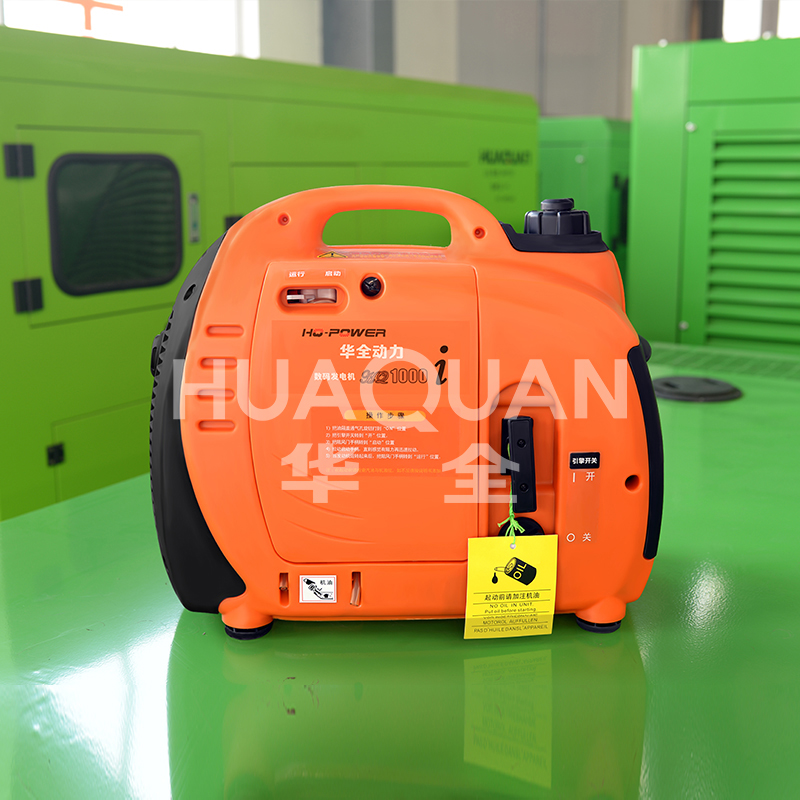

I: Inverter Silent Type

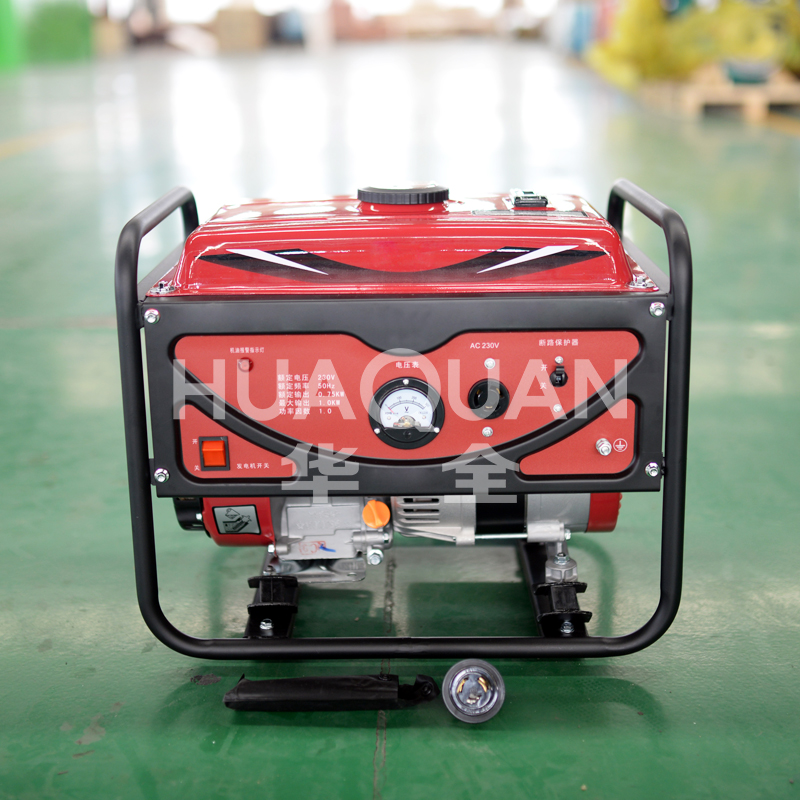

II: Standard Fixed Type

Parameters 2

	Parameters	I: Inverter Silent Type	II: Standard Fixed Type
Whole	Model	HQ1QF-HS1200i	HQ1QF-YH1200A
Engine	Model	HS1200i.1	154F (Vertical)
	Type	Four-Stroke, Overhead Valve, Single Cylinder, Forced Air Cooling	Side-Mounted Valves
	Placement (cm³)	53.2	97
	Bore×Storke (mm)	43.5×35.8	/
	Compression Ratio	7.6:1	/
	Rated RPM (kW/min-¹)	5300	/
	Ignition System	Full Crystal Electronic Ignition	Contactless Transistor
	Start System	Manual Recoil Start	Manual Start
	Gasoline Type	Unleaded Gasoline	Unleaded Gasoline
	Lubricating Oil Type	SF 15W-40	SF 15W-40
Generator	Model	T-HS1000i	YH1200A
	Rated Frequency (Hz)	50 ▏ 50	50
	Rated Voltage (V)	230 ▏ 220	230
	Rated Current (A)	3.9 ▏ 4.1	/
	Rated RPM (min-¹)	5300	/
	Rated Output Power (kVA)	0.9	0.8
	Maximum Rated Power (kVA)	1.0	1.0
	DC Output	12V, 5A	/
	USB Output	/	/
	Overload Protection DC (Direct Current) AC (Alternating Current)	Fuse-Free Overcurrent Protector AC Overcurrent Protection Program Control
Generator Set	Gasoline Tank Capacity (L)	2.2	6.5
	Continuous Running Time (h)	3 (Rated Power)	6
	Fuel Consumption Rate (g/(kw.h))	≤550	/
	Operating Ambient Temperature (℃)	-15~40	/
	Maximum Operating Altitude (m)	1000	/
	※Noise (dB/4m) LWA	90	/
	※※Noise (dB/7m) LPA	54-59	/
	Overall Dimensions (L×W×H) (mm)	451×242×379	480×360×400
	Net Weight (kg)	14	26
	Standard Implemented	Q/1300 LHZ002-2013	/
